Open kit building 504m² up to 500m altitude

Request a free quote

Building details

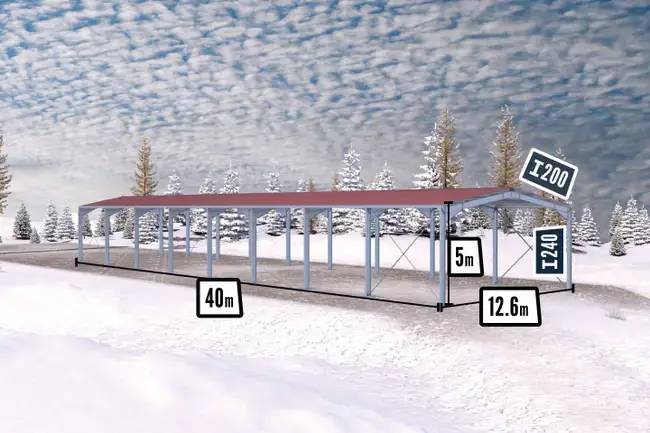

Shape and sizes

Building area : 504.00m2
Type of slope : Double slope (16%)
Width : 12.6m
Length : 40m
Height: 5m
Rafter section : Ⅰ 200mm
Post section : Ⅰ 240mm
Purlins : C180mm galvanized

Covering

Type of roofing : 0.63mm lacquered sheet metal
Ridge : Flat & Extra large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1 : Building calculated for an installation up to 550m above sea level

Description

This 504² bi-slope building in kit form comes with a PRS High Resistance Steel and a hot-dip galvanized structure; and a reinforced 5-wave sheet metal roof. This robust and durable building helps you protect your agricultural machinery and assets! Our building has been designed to get built in altitudes up to 400m. It is a new building, never assembled, and available in stock!



Ask for your free quote!



The strengths of our 12.6x40x5m galvanized building:



Robustness and resistance

  • Adapted to an implantation up to 400m of altitude, reinforced sections and length in spans of 5m, calculated to maximize the resistance to snow loads.
  • Ɪ profile structure thanks to PRS made of High Resistance Steel, used in the construction of buildings of large dimensions and heights
  • 1st choice sheet metal roofing and cladding 5 reinforced corrugations, a unique sheet metal model for 8% greater resistance than conventional sheet metal
  • Optimal roof support thanks to C180mm purlins 9% stronger than the C160mm purlins usually offered on the market


Economy and sustainability

  • Thanks to the anti-corrosion action of hot-dip galvanizing
  • Steel frame and elements preserved from rust for many years
  • Eliminated maintenance costs over the very long term, unlike a painted structure which requires additional coats and regular touch-ups


Simple delivery and assembly

  • Kit building delivered with its assembly plans to the address of your choice or the nearest port
  • Easy assembly using a lifting device and a few tools, even without technical knowledge thanks to the pre-drilled structure


Manufacturer's insurance and tax-free billing

  • Manufacturers' warranties included German insurance HDI Gerling


The best value market price

  • The budget is focused on your primary need: you only spend on the essentials and not the accessory.
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market


The prices mentioned are VAT excluded and do not include the cost of transport which will be communicated to you by our team of sales experts.
Non-contractual illustration photo.

Available options

Cladding: enclose your metal building
Additional 5 and 6m spans: increase the surface area and length of the building
Reinforcement to receive photovoltaic panels
Canopies: add one or two canopies to increase the covered area
Insulation with our sandwich panels: eliminate temperature differences to benefit from a comfortable work space.
Translucent sheets, smoke vents, zenithal vault: let in natural light to save energy
Openings: adapt the space to your business: sliding door, sectional door, metal curtain, windows or a supporting beam
Mezzanine: increase the usable area of your building and create independent spaces
Overhead crane or a feed claw: we adapt the resistance of the building and provide you with a runway
