Bâtiment en kit ouvert de 500m² structure en acier galvanisée à chaud PRS haute résistance et couverture tôle 1er choix 5 ondes 10%
Dimensions d'un bâtiment en kit à structure galvanisé pour de stockage et entreposage 10%
Bâtiment en kit ouvert de 500m² structure en acier galvanisée à chaud PRS haute résistance et couverture tôle 1er choix 5 ondes
Dimensions d'un bâtiment en kit à structure galvanisé pour de stockage et entreposage

Open kit building 500m²

In Stock
Request a free quote

Building details

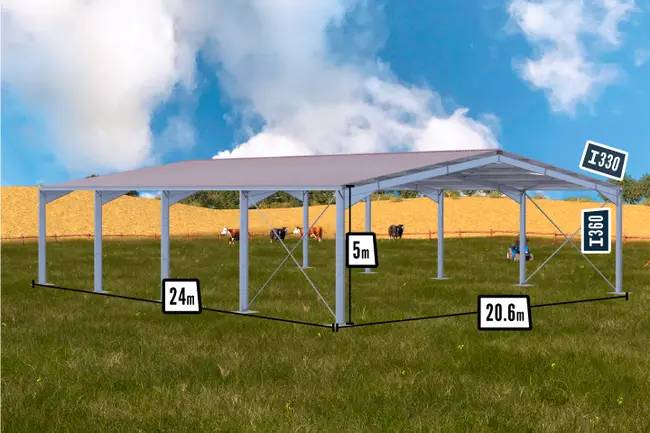

Shape and sizes

Building area : 500.00m2
Type of slope : Double slope (16%)
Width : 20.6m
Length : 24m
Height: 5m
Rafter section : Ⅰ 330mm
Post section : Ⅰ 360mm
Purlins : C180mm galvanized

Covering

Type of roofing : 0.63mm lacquered sheet metal
Ridge : Flat & Extra large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1 : Building for agricultural or industrial storage

Description

With an area of ​​500m² and large width of 20.6m, this building offers you a comfortable storage area, at the best price! Equipped with a hot-dip galvanized PRS High Resistance Steel structure and a reinforced 5-wave sheet metal roof, it gives you optimal robustness! Find the strengths of this building and its possible options in the description below!


The strengths of our 20.6x24x5m galvanized building:



Robustness and resistance



Savings and sustainability thanks to the rust protection effect of hot-dip galvanization

  • Steel frame and elements are protected from rust for many years
  • No maintenance costs over the very long term, unlike a painted structure that requires regular touch-ups



Easy delivery and assembly

  • Kit building delivered with its assembly plans to the address of your choice or the nearest port
  • Easy assembly using a lifting device and a few tools, even without technical knowledge thanks to the pre-drilled structure


Manufacturer's insurance and tax-free billing



The best-value market price

  • The budget focuses on your primary need: you only spend on the essentials and not the accessory.
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market


The prices mentioned are VAT excluded and do not include the cost of transport which will be communicated to you by our team of sales experts.
Non-contractual illustration photo.

Available options

Translucent sheets, smoke vents, zenithal vault: let in natural light to save energy
Reinforcement of roof's static load in order to receive photovoltaic panels
Condensation controller
Galvanized interlocking gutters with high evacuation rate
Cladding: Enclose your metal building
Insulation with our sandwich panels: eliminate temperature differences to benefit from a comfortable work space
Openings: adapt the space to your business: sliding door, sectional door, metal curtain, windows
Additional 5 and 6m spans: increase the surface area and length of the building
Canopies: add one or two canopies to increase the covered area
Mezzanine: increase the usable area of your building and create independent spaces
Overhead crane or a feed claw: we adapt the resistance of the building and provide you with a runway
Hinged mounting on base plate, mounting at level 0 instead of flush mounting
