Bâtiment en kit ouvert, 400m² de stockage pour récolte agricole ou équipement industriels 12%
Dimensions bâtiment en kit de stockage agricole et industriel 12%
Bâtiment en kit ouvert, 400m² de stockage pour récolte agricole ou équipement industriels
Dimensions bâtiment en kit de stockage agricole et industriel

Open kit building 400m²

In Stock
Request a free quote

Building details

Shape and sizes

Building area : 400.00m2
Type of slope : Double slope (16%)
Width : 16.6m
Length : 24m
Height: 5m
Rafter section : Ⅰ 270mm
Post section : Ⅰ 270mm
Purlins : C180mm galvanized

Covering

Type of roofing : 0.63mm lacquered sheet metal
Ridge : Flat & Extra large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1 : Building for agricultural or industrial storage

Description

Take advantage of our robust kit building designed to provide you with 400m² of storage space, suitable for agricultural or industrial activity. Conceived High Resistance Steel and hot-dip galvanized frame; and a reinforced 5-wave sheet metal roof for optimal robustness! This kit building is in stock, and quickly available!

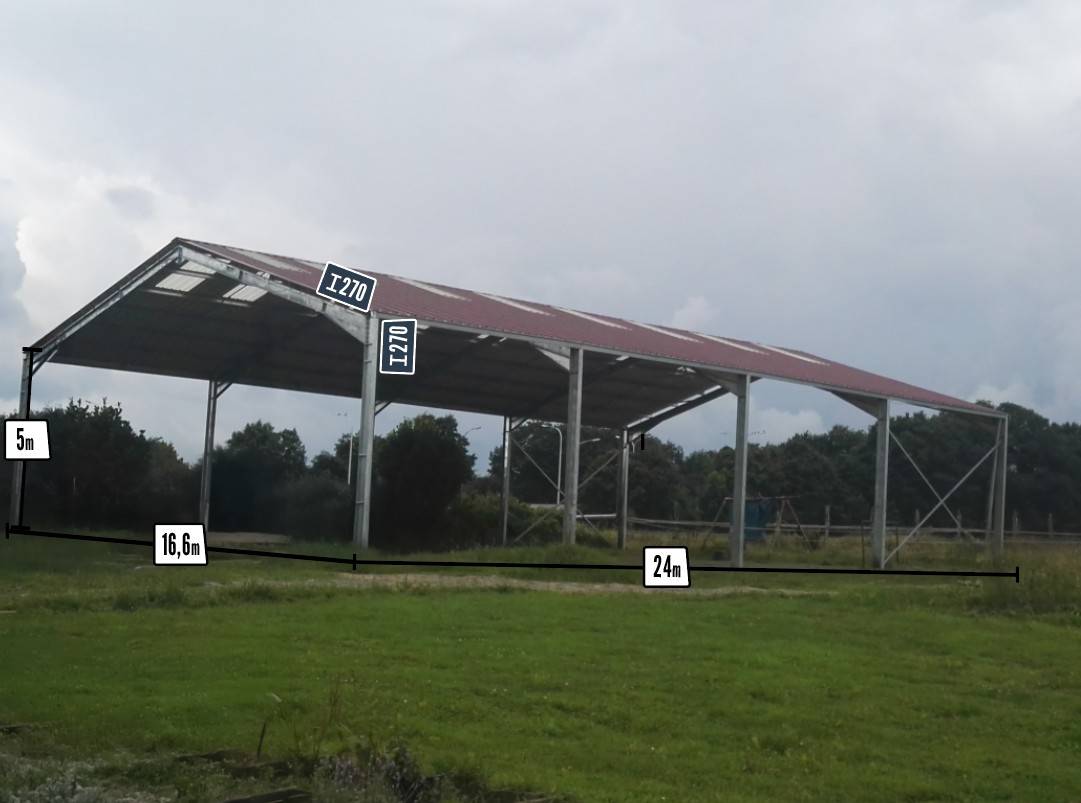

Strengths of our 16,60x24x5m 400m² open kit building


Robustness and resistance

  • Ɪ profile structure thanks to PRS made of High Resistance Steel, used in the construction of buildings of large dimensions and heights
  • Roof made of 1st choice 5-wave reinforced sheet metal, a unique model of sheet metal with 8% more resistance than conventional sheet metal
  • Optimal roof support thanks to C180mm purlins 9% stronger than the C160mm purlins usually offered on the market


Savings and sustainability thanks to the rust protection effect of hot-dip galvanization

  • Steel frame and elements are protected from rust for many years
  • No maintenance costs over the very long term, unlike a painted structure that requires regular touch-ups



Easy delivery and assembly

  • Kit building delivered with its assembly plans to the address of your choice or the nearest port
  • Easy assembly using a lifting device and a few tools, even without technical knowledge thanks to the pre-drilled structure


Manufacturer's insurance and tax-free billing



The best value market price

  • The budget focused on your primary need: you only spend on the essentials and not the accessory.
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market


The prices mentioned are VAT excluded and do not include the cost of transport which will be communicated to you by our team of sales experts.

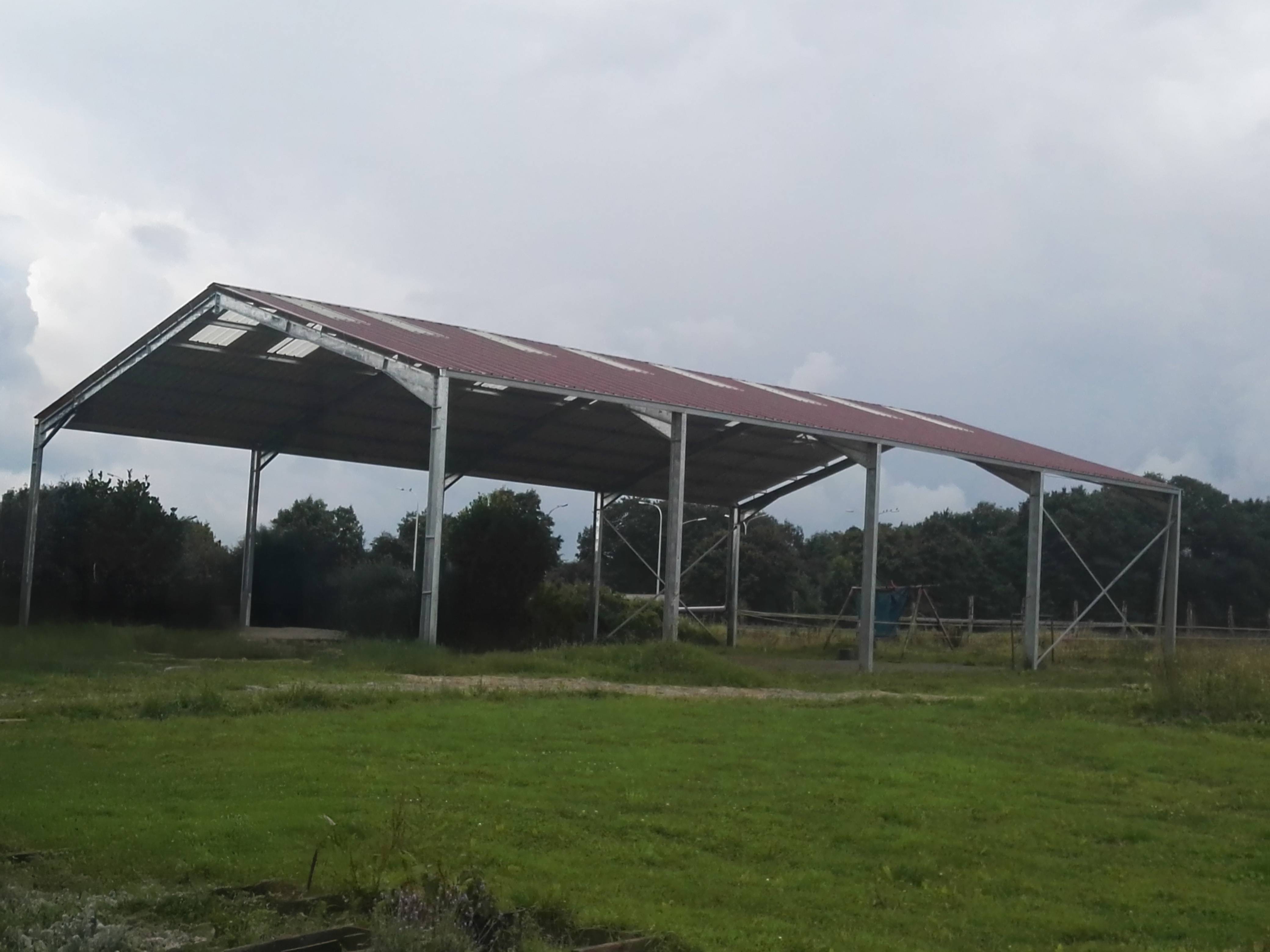

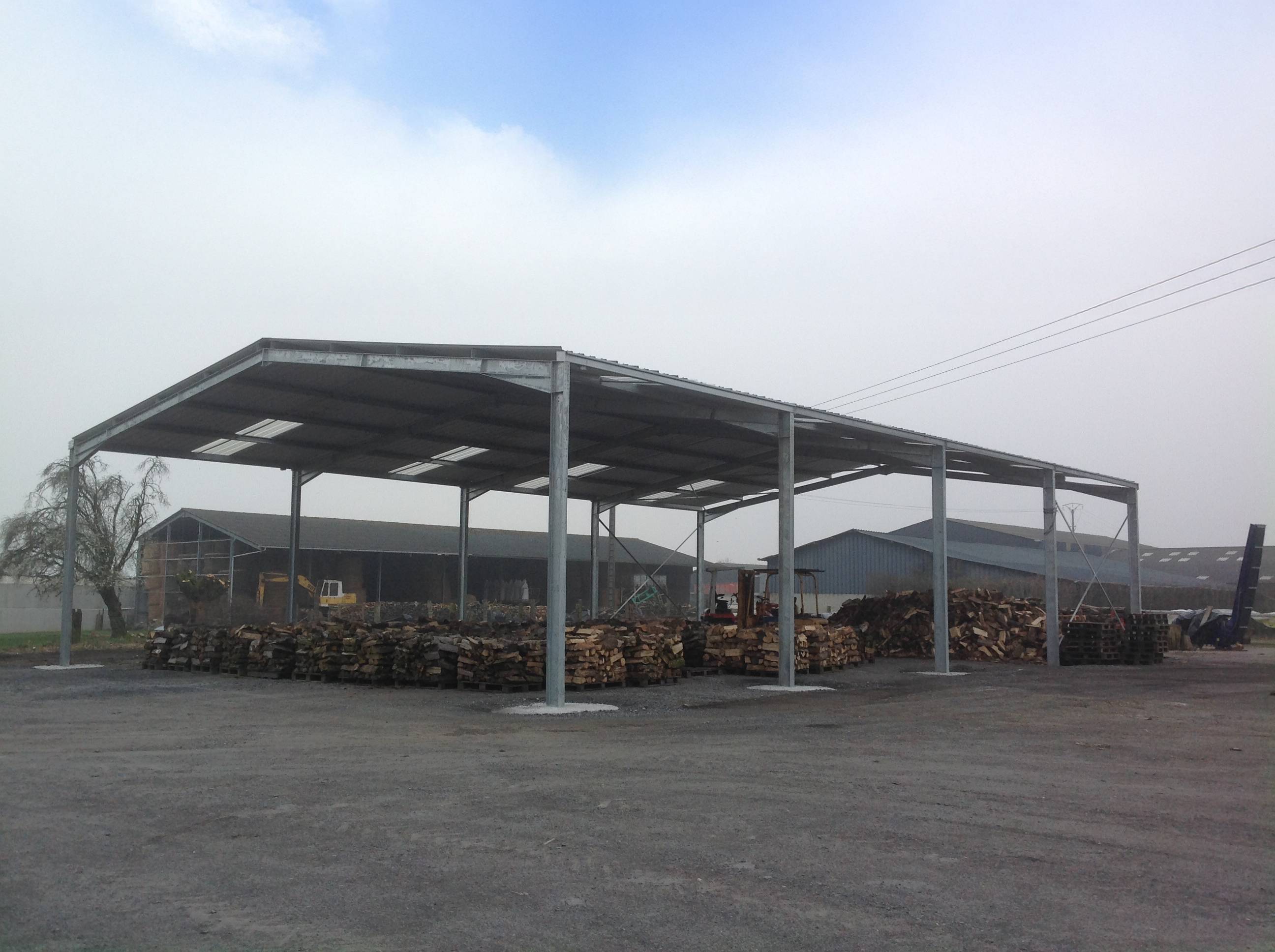

Non-contractual illustration photo.

Available options

Gutters for a high drainage rate
Condensation control with our draining condensation controller
Cladding: enclose your metal building
Additional 5 and 6m spans: increase the surface area and length of the building
Canopies: add one or two canopies to increase the covered area
Insulation with our sandwich panels: eliminate temperature differences to benefit from a comfortable work space.
Translucent sheets, smoke vents, zenithal vault: let in natural light to save energy
Openings: adapt the space to your business: sliding door, sectional door, metal curtain, windows or a supporting beam
Mezzanine: increase the usable area of your building and create independent spaces
Overhead crane or a feed claw: we adapt the resistance of the building and provide you with a runway
