Bâtiment en kit de 400m² pour altitude jusqu'à 400m 10%

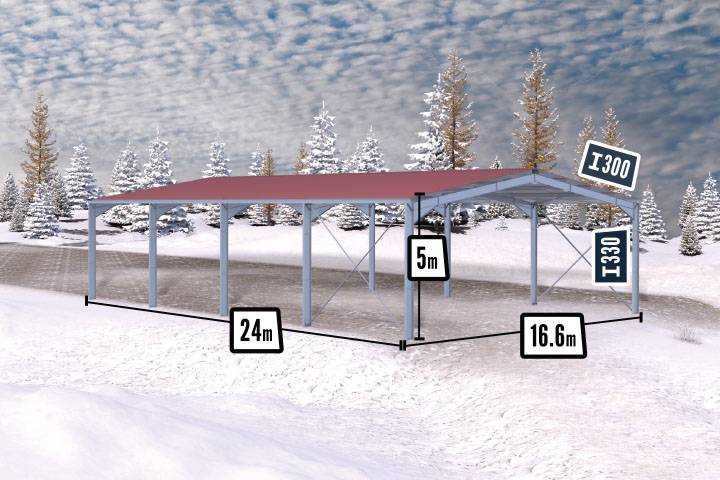

Dimensions d'un bâtiment en kit de 400m², idéal pour une altitude jusqu'à 400m 10%
Bâtiment en kit de 400m² pour altitude jusqu'à 400m
Dimensions d'un bâtiment en kit de 400m², idéal pour une altitude jusqu'à 400m

Open 400m² building for an altitude up to 400m

Request a free quote

Building details

Shape and sizes

Opening : Openned
Building area : 400.00m2
Type of slope : Double slope (16%)
Width : 16.6m
Length : 24m
Height: 5m
Rafter section : Ⅰ 300mm
Post section : Ⅰ 330mm
Purlins : C180mm galvanized

Covering

Type of roofing : 0.63mm lacquered sheet metal
Ridge : Flat & Extra large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1 : Building calculated for an installation up to 400m above sea level

Description

This 400² bi-slope building in kit form comes with a PRS High Resistance Steel, a hot-dip galvanized structure; and a reinforced 5-wave sheet metal roof. This robust and durable building helps you protect your machinery and equipment as well as your! Calculated by our experts for implementation in altitudes up to 400m.



The strengths of our 12.6x18x5m galvanized building:



Robustness and resistance

  • Suitable for an installation up to 400m altitude, reinforced sections
  • Ɪ profile structure thanks to High Resistance Steel, used in the construction of buildings of large dimensions and heights
  • Roof made of 1st choice 5-wave reinforced sheet metal, a unique model of sheet metal with 8% more resistance than conventional sheet metal, check our color chart
  • Optimal roof support thanks to C180mm purlins 9% stronger than the C160mm purlins usually offered on the market


Savings and sustainability thanks to the rust protection effect of hot-dip galvanization

  • Steel frame and elements are protected from rust for many years
  • No maintenance costs over the very long term, unlike a painted structure that requires regular touch-ups



Easy delivery and assembly

  • Kit building delivered with its assembly plans to the address of your choice or the nearest port
  • Easy assembly using a lifting device and a few tools, even without technical knowledge thanks to the pre-drilled structure


Manufacturer's insurance and tax-free billing

The best-value market price

  • The budget is focused on your primary need: you only spend on the essentials and not the accessory.
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market


The prices mentioned are VAT excluded and do not include the cost of transport which will be communicated to you by our team of sales experts.

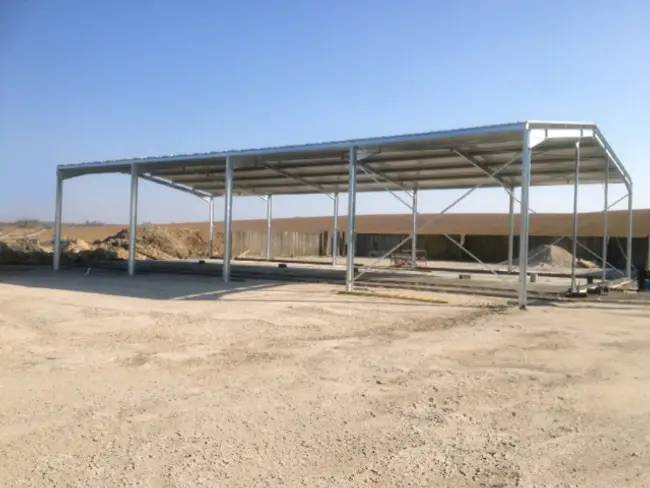

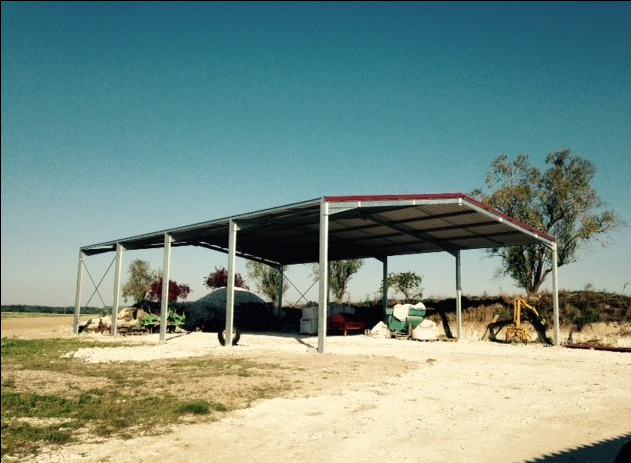

Non-contractual illustration photo.

Available options

Translucent sheets, smoke vents, zenithal vault: let in natural light to save energy
Reinforcement of roof's static load in order to receive photovoltaic panels
Condensation controller – Galvanized interlocking gutters with high evacuation rate – Cladding: Enclose your metal building
Insulation with our sandwich panels: eliminate temperature differences to benefit from a comfortable work space
Openings: adapt the space to your business: sliding door, sectional door, metal curtain, windows
Additional 5 and 6m spans: increase the surface area and length of the building
Canopies: add one or two canopies to increase the covered area
Mezzanine: increase the usable area of your building and create independent spaces
Overhead crane or a feed claw: we adapt the resistance of the building and provide you with a runway
Hinged mounting on base plate, mounting at level 0 instead of flush mounting
