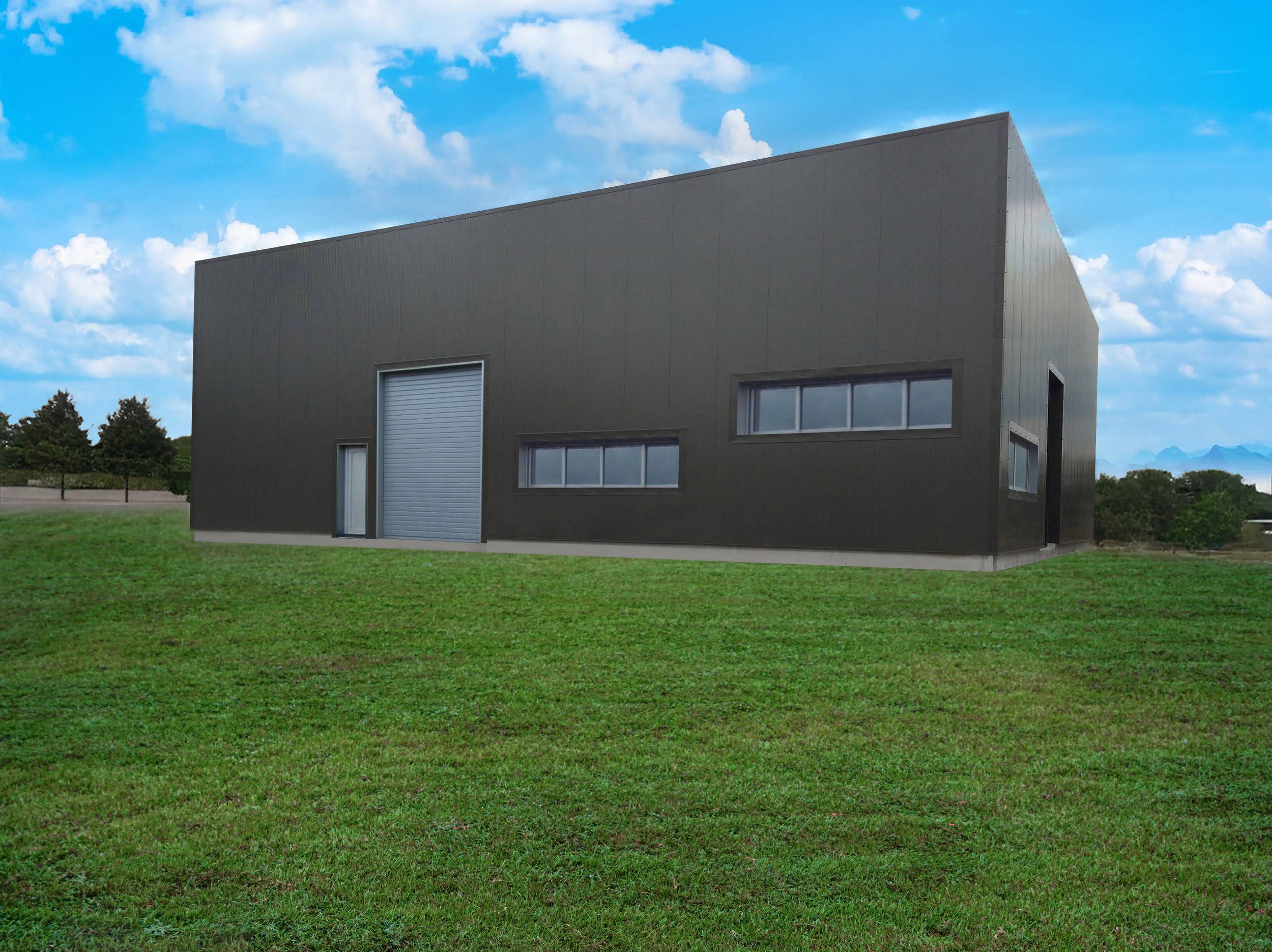

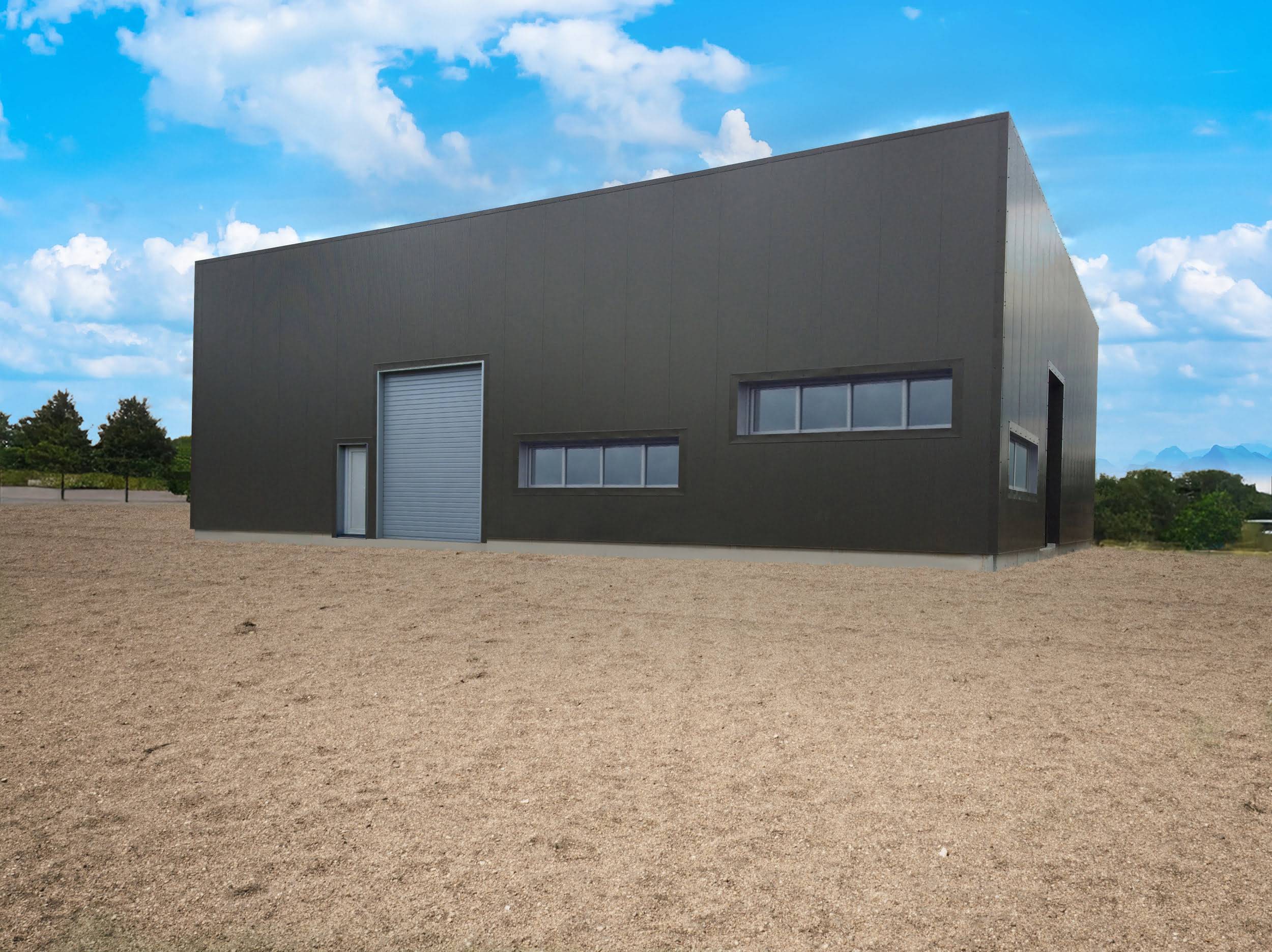

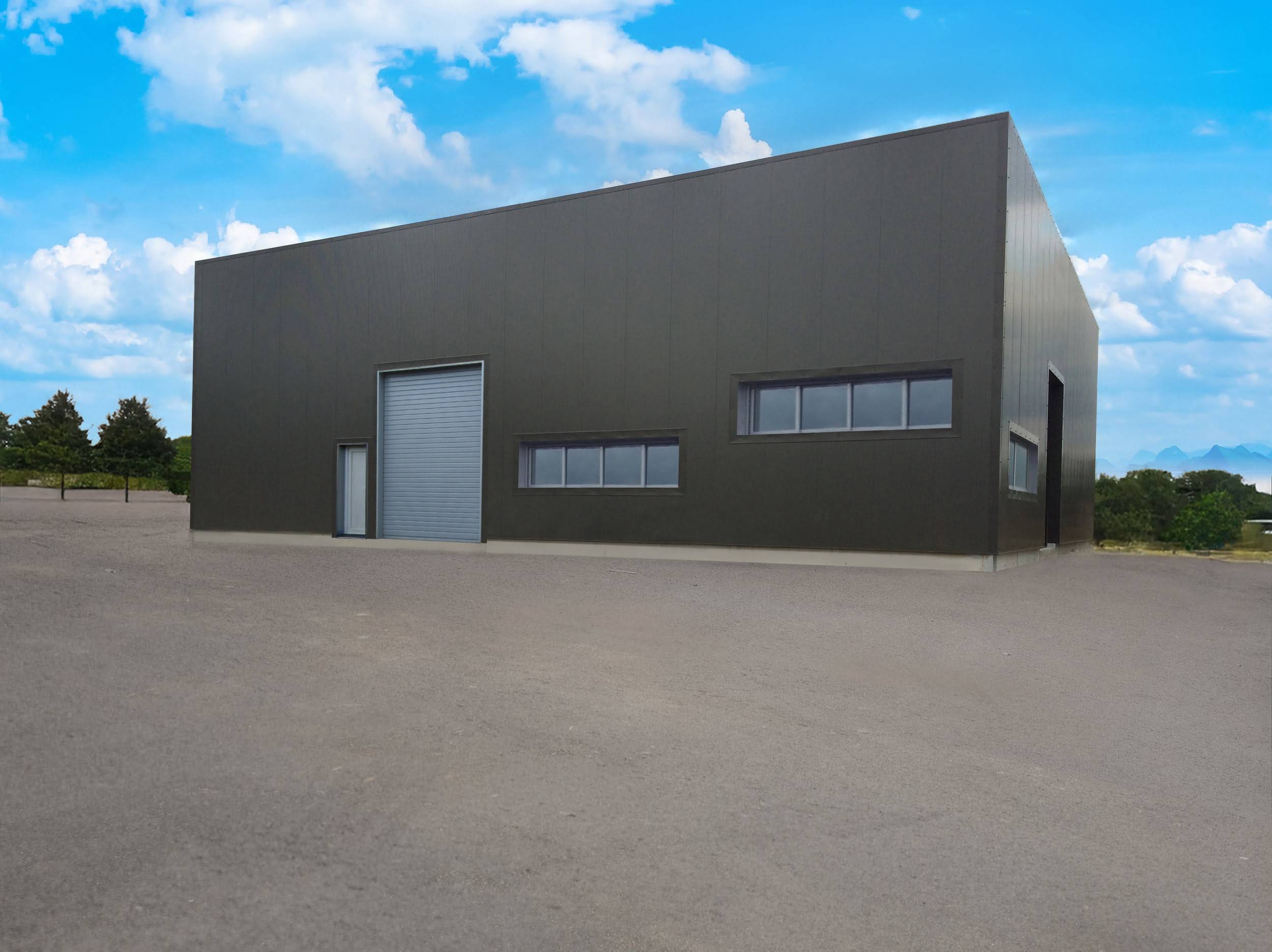

Bâtiment industriel 400 m2 avec acrotère

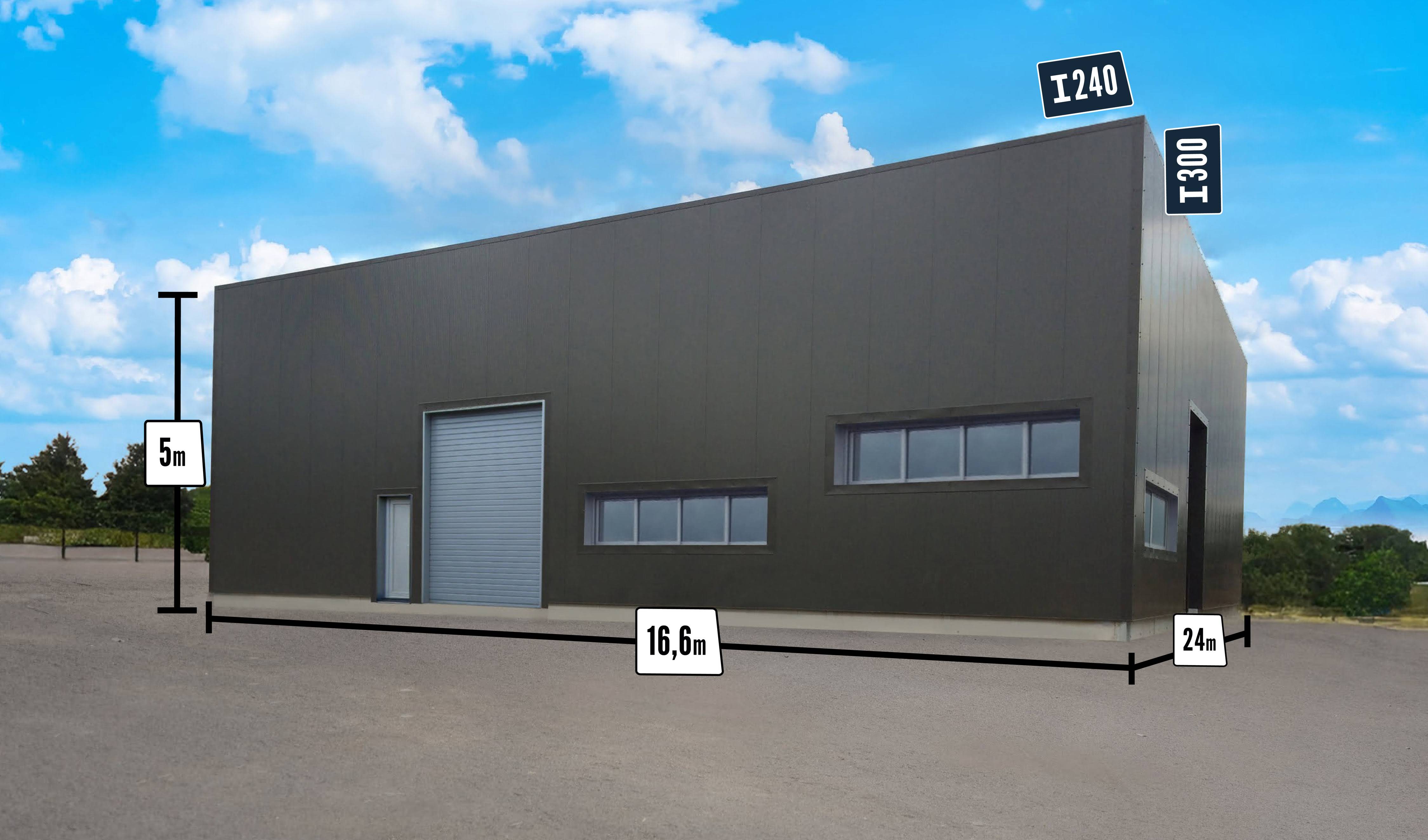

Dimensions bâtiment industriel 400 m2 avec acrotère
Vue aérienne bâtiment industriel 400 m2 avec acrotère
Bâtiment industriel 400 m2 avec acrotère
Dimensions bâtiment industriel 400 m2 avec acrotère

Building with parapet 400m²

In Stock

Request a free quote

Building details

Shape and sizes

Opening : Closed
Building area : 400m2
Type of slope : Parapet (16%)
Width : 16.6m
Length : 24m
Height : 5m
Rafter section : Ⅰ 240mm
Post section : Ⅰ 300mm
Purlins : C180mm galvanized
Gutters : Special galvanized gutters for parapet to be welded


Type of roofing : 0.63mm lacquered sheet metal
Type of cladding : 0.63mm lacquered sheet metal
Ridge : Flat & Extra large
Side Bracing : Included
Bolts and fasteners : Included


Specificity 1: Industrial cubic aspect of the acroterion
Specificity 2: Motorized metal shutter for 4x4
Specificity 3: 1 PVC panel door


Take advantage of an exceptional offer on our building with a parapet! It comes with a hot-dip galvanized structure in high-strength PRS steel and comes with 63/100 first choice roofing sheets. Our flat roof galvanized steel building is equipped with a 4x4 motorized metal shutter as well as a PVC gate. Designed to best adapt to your needs for the establishment of a production activity building, a storage space, or the establishment of commercial premises such as showrooms.

Robustness and resistance


Savings and sustainability thanks to the rust protection effect of hot-dip galvanization

  • Steel frame and elements are protected from rust for many years
  • No maintenance costs over the very long term, unlike a painted structure that requires regular touch-ups


Efficient rainwater evacuation

Healthy air thanks to our draining condensation controller (absorption up to 500g/m²)

  • Eliminates the risk of mold on goods stored in an industrial warehouse
  • Offers an ideal sanitary environment for cattle, sheep, goat, and pig breeding

Optimized and welcoming space

  • Thanks to its 4x4 manual sectional door and the PVC gate (RAL 7016) to facilitate flows circulation



  • Industrial cubic appearance given by its parapet is sometimes requested in certain areas of industrial establishments


Easy delivery and assembly

  • Kit building delivered with its assembly plans to the address of your choice or the nearest port
  • Easy assembly using a lifting device and a few tools, even without technical knowledge thanks to the pre-drilled structure

Manufacturer's insurance and tax-free billing


The best-value market price

  • The budget focused on your primary need: you only spend on the essentials and not the accessory.
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market
The prices are exclusive of taxes and transport costs. These costs will be communicated to you at the time of your quote.
Building eligible for installation up to a maximum altitude of 260m only.
Illustration photo is not contractual.

Available options

Translucent sheets, smoke vents, zenithal vault: let in natural light to save energy
Insulation with thicker sandwich panels
Openings: adapt the space to your business: sliding door, sectional door, metal curtain, windows
Additional 5 and 6m spans: increase the surface area and length of the building
Canopies: add one or two canopies to increase the covered area
Mezzanine: increase the usable area of your building and create independent spaces
Overhead crane or a feed claw: we adapt the resistance of the building and provide you with a runway
Hinged mounting on base plate, mounting at level 0 instead of flush mounting
