Galvanized reinforced building 315m² for heavy snow load

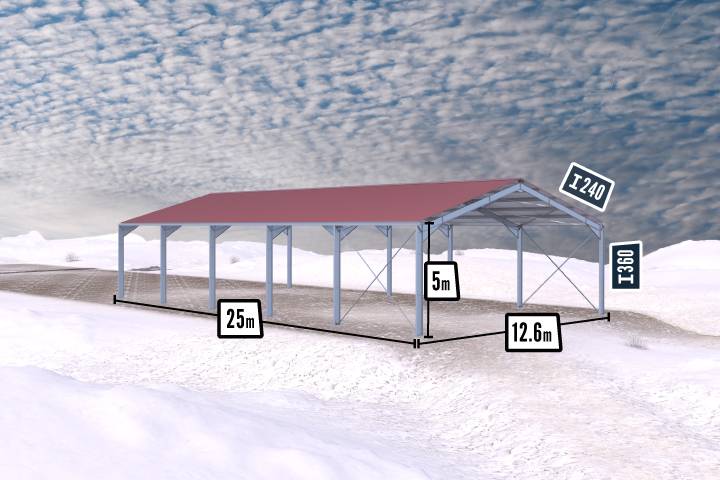

- Building area 315m2
- Height 5m
- Type of slope Double slope (25%)
- Width 12.6m
- Length 25m
- Price per: 60€/m2
From
€18,600instead of €20,100
Building details
Shape and sizes
Opening : | Openned |
Building area : | 315m2 |
Type of slope : | Double slope (25%) |
Width : | 12.6m |
Length : | 25m |
Height : | 5m |
Rafter section : | Ⅰ 240mm |
Post section : | Ⅰ 360mm |
Purlins : | C180mm galvanized |
Gutters : | Galvanized |
Covering
Type of roofing : | 0.63mm lacquered sheet metal |
Ridge : | Flat & Extra large |
Side Bracing : | Included |
Bolts and fasteners : | Included |
Specificities
Specificity 1: | Adapted to mountainous areas up to 850m |
Specificity 2: | Galvanized interlocking gutters |
Specificity 3: | Draining condensation controller |
Description
Our galvanized kit structure stands strong against heavy snow loads.
Built to brave winter challenges, this storage building is ideal for areas with heavy snow load in Eastern Europe (Romania, Bulgaria, Slovakia, the Czech Republic, etc.).
Our building is constructed with a structure made of hot-dip galvanized high-strength steel, while the roof is made with top-grade reinforced 5-wave sheets and reinforced sections, offering unparalleled durability and resilience during heavy snowfalls.
It also includes gutters with high evacuation flow and a condensation controller.
The strengths of our 12,60x25x5m galvanized building:
Robustness and resistance
- Ɪ profile structure with High Resistance Steel, used in the construction of buildings of large dimensions and heights
-
Roof made of 1st choice 5-wave reinforced sheet metal, a unique model of sheet metal with 8% more resistance than conventional sheet metal, check our color chart
- Optimal roof support thanks to C180mm purlins 9% stronger than the C160mm purlins usually offered on the market
Savings and sustainability thanks to the rust protection effect of hot-dip galvanization
- Steel frame and elements are protected against rust, guaranteeing years of durability.
- No maintenance costs over the very long term, unlike a painted structure that requires regular touch-ups.
Efficient rainwater evacuation
- Galvanized interlocking gutters with a high drainage rate
Healthy air thanks to our draining condensation controller (absorption up to 500g/m²)
- Eliminates the risk of mold on goods stored in an industrial warehouse
- Offers an ideal sanitary environment for cattle, sheep, goat, and pig breeding
Easy delivery and assembly
- Kit building delivered with its assembly plans to the address of your choice or the nearest port
- Easy assembly using a lifting device and a few tools, even without technical knowledge thanks to the pre-drilled structure
Manufacturer's insurance and tax-free billing
- Manufacturers' warranties included in our German insurance HDI Gerling
-
Payment excluding VAT, for professionals, if eligible
The best-value market price
- The budget focused on your primary need: you only spend on the essentials and not the accessory.
- 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market
The prices are exclusive of taxes and transport costs. These costs will be communicated to you at the time of your quote.
Building eligible for installation up to a maximum altitude of 850m for V2NA2 zones. Can also be eligible for installation in zone with snow area up to 125daN/m², wind speed of 25m/s max, up to 200m in altitude.
Illustration photo is not contractual.
Available options
Translucent sheets, smoke vents, zenithal vault: let in natural light to save energy |
Reinforcement of roof's static load in order to receive photovoltaic panels |
Cladding: Enclose your metal building |
Insulation with our sandwich panels: eliminate temperature differences to benefit from a comfortable work space |
Openings: adapt the space to your business: sliding door, sectional door, metal curtain, windows |
Additional 5 and 6m spans: increase the surface area and length of the building |
Canopies: add one or two canopies to increase the covered area |
Mezzanine: increase the usable area of your building and create independent spaces |
Overhead crane or a feed claw: we adapt the resistance of the building and provide you with a runway |
Hinged mounting on base plate, mounting at level 0 instead of flush mounting |
