Galvanized kit building 740m² + 3 sides cladding

In Stock
Request a free quote

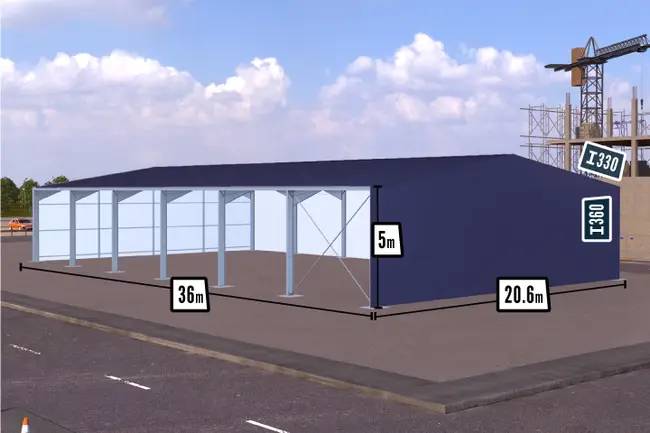

Building details

Shape and sizes

Opening : Closed
Building area : 740m2
Type of slope : Double slope (16%)
Width : 20.6m
Length : 36m
Height: 5m
Rafter section : Ⅰ 330mm
Post section : Ⅰ 360mm
Purlins : C180mm galvanized


Type of roofing : 0.63mm lacquered sheet metal
Type of cladding : 0.63mm lacquered sheet metal
Ridge : Flat & Extra large
Side Bracing : Included
Bolts and fasteners : Included


Specificity 1 : Cladding on 3 sides: 2 gable ends & 1 long side


Take advantage of an exceptional price on our 740m² galvanized steel kit building. Our steel building comes with a structure made of hot-dip galvanized PRS high-resistance steel for more robustness. Its extraordinary durability is also due to the cladding and the roofing made of 1st choice reinforced 5-wave metal sheets. The cladding on 3 sides setup allows you to safely store your merchandise, production, equipment, and vehicles, whilst maintaining enough space for your logistical operations.


The strengths of our galvanized 20.6x36x5m kit building cladded on 3 sides:


Robustness and resistance

  • Ɪ profile structure thanks to High Resistance Steel, used in the construction of buildings of large dimensions and heights
  • Roof made of 1st choice 5-wave reinforced sheet metal, a unique model of sheet metal with 8% more resistance than conventional sheet metal, check our color chart
  • Optimal roof support thanks to C180mm purlins 9% stronger than the C160mm purlins usually offered on the market
  • Extra-large plate ridge fixed on purlins

Cladidng included for a secure storage

  • Cladding up to the ground in 1st choice 63/100th metal sheets included on the 3 sides: 1 long side + 2 gables to partially close your building, 4 corner connectors included
  • Metal sheet roofing overhangs by 20cm on the two long sides
  • Perfect configuration for agricultural or industrial use and adapts to your logistics operations.

Savings and sustainability thanks to the rust protection effect of hot-dip galvanization

  • Steel frame and elements are protected from rust for many years
  • No maintenance costs over the very long term, unlike a painted structure that requires regular touch-ups

Easy delivery and assembly

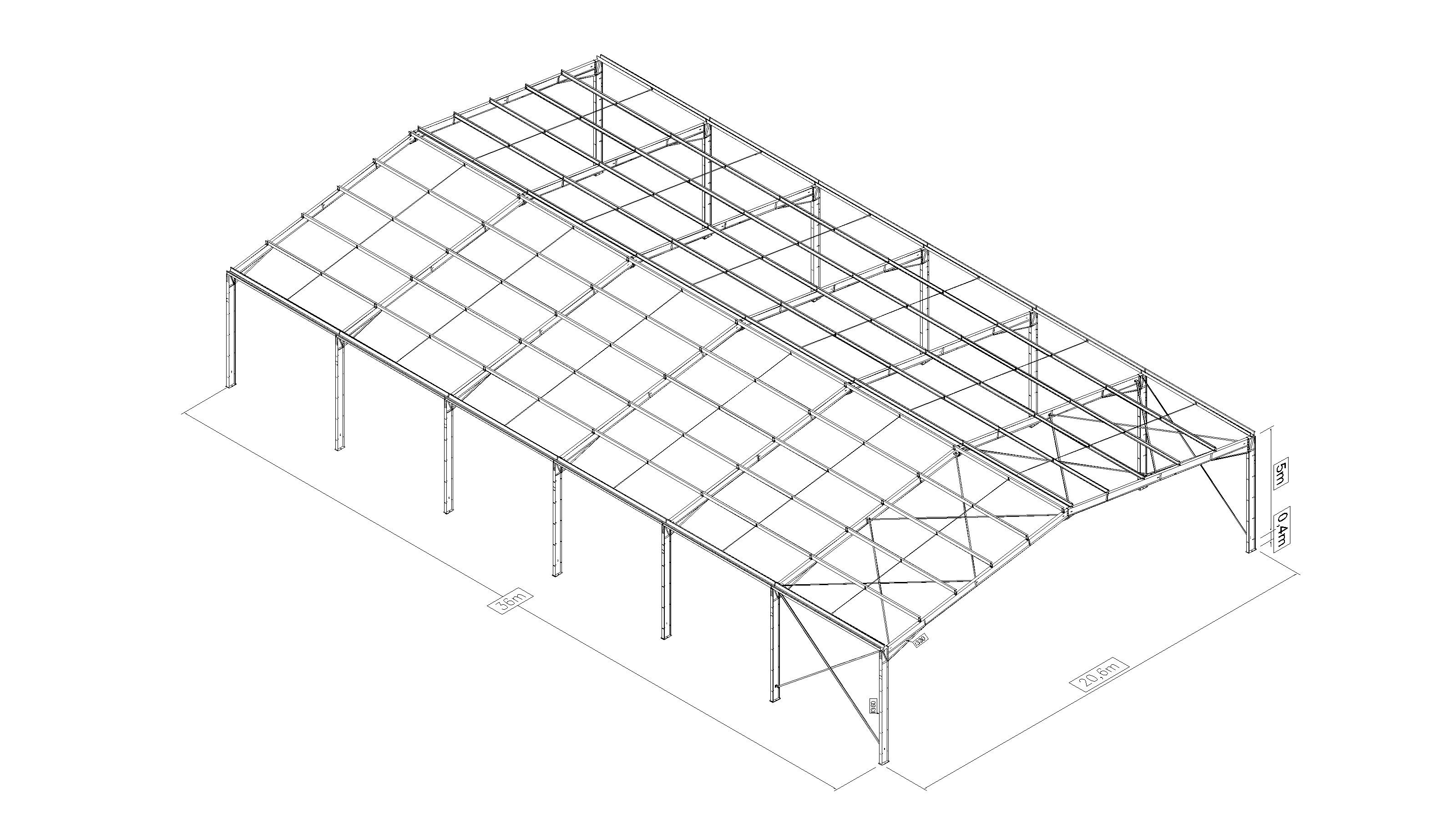

  • Kit building delivered with its assembly plans to the address of your choice or the nearest port
  • Easy assembly using a lifting device and a few tools, even without technical knowledge thanks to the pre-drilled structure

Manufacturer's insurance and tax-free billing

The best value market price

  • The budget focused on your primary need: you only spend on the essentials and not the accessory.
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market
The prices are exclusive of taxes and transport costs. These costs will be communicated to you at the time of your quote.
Building eligible for installation up to a maximum altitude of 260m only.
Illustration photo is not contractual.

Available options

Translucent sheets, smoke vents, zenithal vault: let in natural light to save energy
Reinforcement of roof's static load in order to receive photovoltaic panels
Condensation controller – Galvanized interlocking gutters with high evacuation rate – Cladding: Enclose your metal building
Insulation with our sandwich panels: eliminate temperature differences to benefit from a comfortable work space
Openings: adapt the space to your business: sliding door, sectional door, metal curtain, windows
Additional 5 and 6m spans: increase the surface area and length of the building
Canopies: add one or two canopies to increase the covered area
Mezzanine: increase the usable area of your building and create independent spaces
Overhead crane or a feed claw: we adapt the resistance of the building and provide you with a runway
Hinged mounting on base plate, mounting at level 0 instead of flush mounting
