Galvanized building 600m² up to 400m altitude
- Building area: 600m2
- Height: 5m
- Type of slope: Double slope (16%)
- Width: 12.6m
- Length: 48m
- Prix au m2 : 41,58€/m2
From
€24,950instead of €31,260
Building details

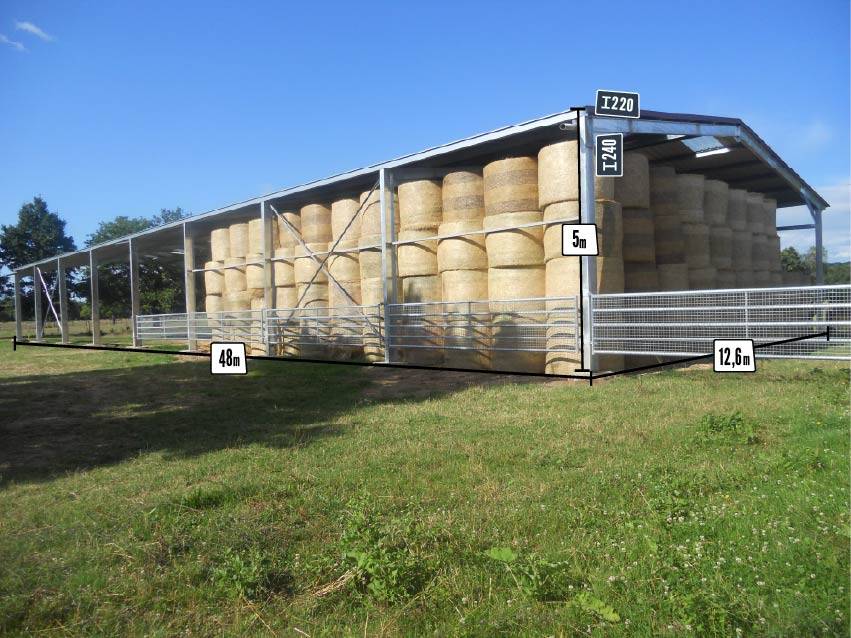

Shape and sizes
| Opening : | Openned |
| Building area : | 600m2 |
| Type of slope : | Double slope (16%) |
| Width : | 12.6m |
| Length : | 48m |
| Height: | 5m |
| Rafter section : | Ⅰ 200mm |
| Post section : | Ⅰ 240mm |
| Purlins : | C180mm galvanized |
| Gutters : | Galvanized |
Covering
| Type of roofing : | 0.63mm lacquered sheet metal |
| Ridge : | Flat & Extra large |
| Side Bracing : | Included |
| Bolts and fasteners : | Included |
Specificities
| Specificity 1 : | Adapted for installation at medium altitude from 260 to 400m |
| Specificity 2 : | Galvanized interlocking gutters with high evacuation rate |
| Specificity 3 : | Condensation regulator |
Description
Take advantage of a metal building kit designed for installation at an altitude of up to 400m. This kit building comes with a hot-dip galvanized PRS High Resistance Steel structure and a reinforced 5-wave sheet metal cover. Our 605m² hangar in kit shape lets you store your production; or equipment with ease thanks to its generous 48m width. Conceived for installation at medium altitude, going from 260 to 400m, this robust and durable kit building is at the best quality-price ratio on the market.
The strengths of our 12.6x48x5m galvanized building:
Robustness and resistance
- Adaptation to an installation up to 400m altitude thanks to the reinforced post and truss sections for a more resistant frame
- Ɪ profile structure thanks to PRS made of High Resistance Steel, processes; and materials used in the construction of buildings of large dimensions and significant heights
-
Roof made of 1st choice sheet metal cover, thickness 63/100th 5reinforces waves a unique model of sheet metal with 8% more resistance than conventional sheet metal, check our color chart
- Optimal roof support thanks to Z300 purlins, stronger than C purlins suitable for strong wind areas.
Savings and sustainability thanks to the rust protection effect of hot-dip galvanization
- Steel frame and elements are protected from rust for many years
-
No maintenance costs over the very long term, unlike a painted structure that requires regular touch-ups
Efficient rainwater evacuation
- Galvanized interlocking gutters with a high drainage rate
Healthy air thanks to our draining condensation controller (absorption up to 500g/m²)
- Eliminates the risk of mold on goods stored in an industrial warehouse
- Offers an ideal sanitary environment for cattle, sheep, goat, and pig breeding
Easy delivery and assembly
- Kit building delivered with its assembly plans to the address of your choice or the nearest port
- Easy assembly even without technical knowledge thanks to the pre-drilled structure
Manufacturer's insurance and tax-free billing
- Manufacturers' warranties included German insurance HDI Gerling
-
Payment excluding VAT, for professionals, if eligible
The best-value market price
- The budget focused on your primary need: you only spend on the essentials and not the accessory.
- 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market
These costs will be communicated to you when you request a quote and upon indication of your address Building from the Galvafort® range, eligible for installation at a maximum altitude of 400m (installation zones V2NA2). Discount is applicable on strcuture + roofing.
Available options
| Translucent sheets, smoke vents, zenithal vault: let in natural light to save energy |
| Reinforcement of roof's static load in order to receive photovoltaic panels |
| Cladding: Enclose your metal building |
| Insulation with our sandwich panels: eliminate temperature differences to benefit from a comfortable work space |
| Openings: adapt the space to your business: sliding door, sectional door, metal curtain, windows |
| Additional 5 and 6m spans: increase the surface area and length of the building |
| Canopies: add one or two canopies to increase the covered area |
| Mezzanine: increase the usable area of your building and create independent spaces |
| Overhead crane or a feed claw: we adapt the resistance of the building and provide you with a runway |
| Hinged mounting on base plate, mounting at level 0 instead of flush mounting |
