Galvanized building 3 sides cladding 400m²
Client reviews:
Eligibility for building installation
If you are located in an area where climatic problems occur, please contact our experts by email or telephone to define your product.
Shape and sizes
Opening
Partially closed
Building area
398,40m2
Type of slope
Double slope (16%)
Width
16.6m
Length
24m
Height
5m
Rafter section
Ⅰ 270mm
Post section
Ⅰ 270mm
Purlins
C or Z180mm galvanised (high-strength steel S350 )
Gutters
Snap-together gutters - Hot-dip galvanized
Covering
Type of roofing
0.63mm lacquered sheet metal
with condensation control
Type of cladding
0.63mm lacquered sheet metal
Ridge
Flat & Extra large
Side Bracing
Included
Bolts and fasteners
Included
Specificities
Specificity 1:
Includes finishing profiles: Barge flashing and two corner connectors
Specificity 2:
Galvanized interlocking gutters
Specificity 3:
Draining condensation controller
Description
This 400m² bi-sloped building, in kit shape, comes with cladding on 3 sides (2 gables + 1 long side) equipped with a structure in PRS High Resistance Steel and hot-dip galvanized as well as a roof made of reinforced 5-wave sheets. Take advantage of an easy-to-mount building in kit shape to protect equipment, harvest, vehicles, or your animals durably! A brand new building, never assembled, available in stock!
The strengths of our 16.6x24x5m galvanized building:
Robustness and resistance
- Ɪ profile structure thanks to PRS made of High Resistance Steel, used in the construction of buildings of large dimensions and heights
-
1st choice sheet metal roofing and cladding 5 reinforced profile, a unique sheet metal model for 8% greater resistance than conventional sheet metal, check our color chart
- Cladding made of 1st choice 6-wave trapezoidal sheet metal, a cutting-edge solution featuring a modern design, ideal for large dimensions due to its optimal width of 1,085mm and simplified vertical installation. Additional costs should be expected for horizontal installation.
- Optimal roof support thanks to C180mm purlins 9% stronger than the C160mm purlins usually offered on the market
Savings and sustainability thanks to the rust protection effect of hot-dip galvanization
- Steel frame and elements preserved from rust for many years
- Significantly lower maintenance costs, unlike a painted structure which requires additional coats and regular touch-ups
Easy delivery and assembly
- Kit building supplied with assembly instructions. Shipping not included. Delivery available to the address of your choice or to the nearest port
- Easy assembly using a lifting device and a few tools, even without technical knowledge thanks to the pre-drilled structure
Manufacturer's insurance and tax-free billing
- Manufacturers' warranties included in our german insurance HDI Gerling
- Payment excluding VAT, for professionals, if eligible
The best-value market price
- The budget focused on your primary need: you only spend on the essentials and not the accessories.
- 25 years of expertise and hundreds of customers testify that our prices are the most competitive on the market

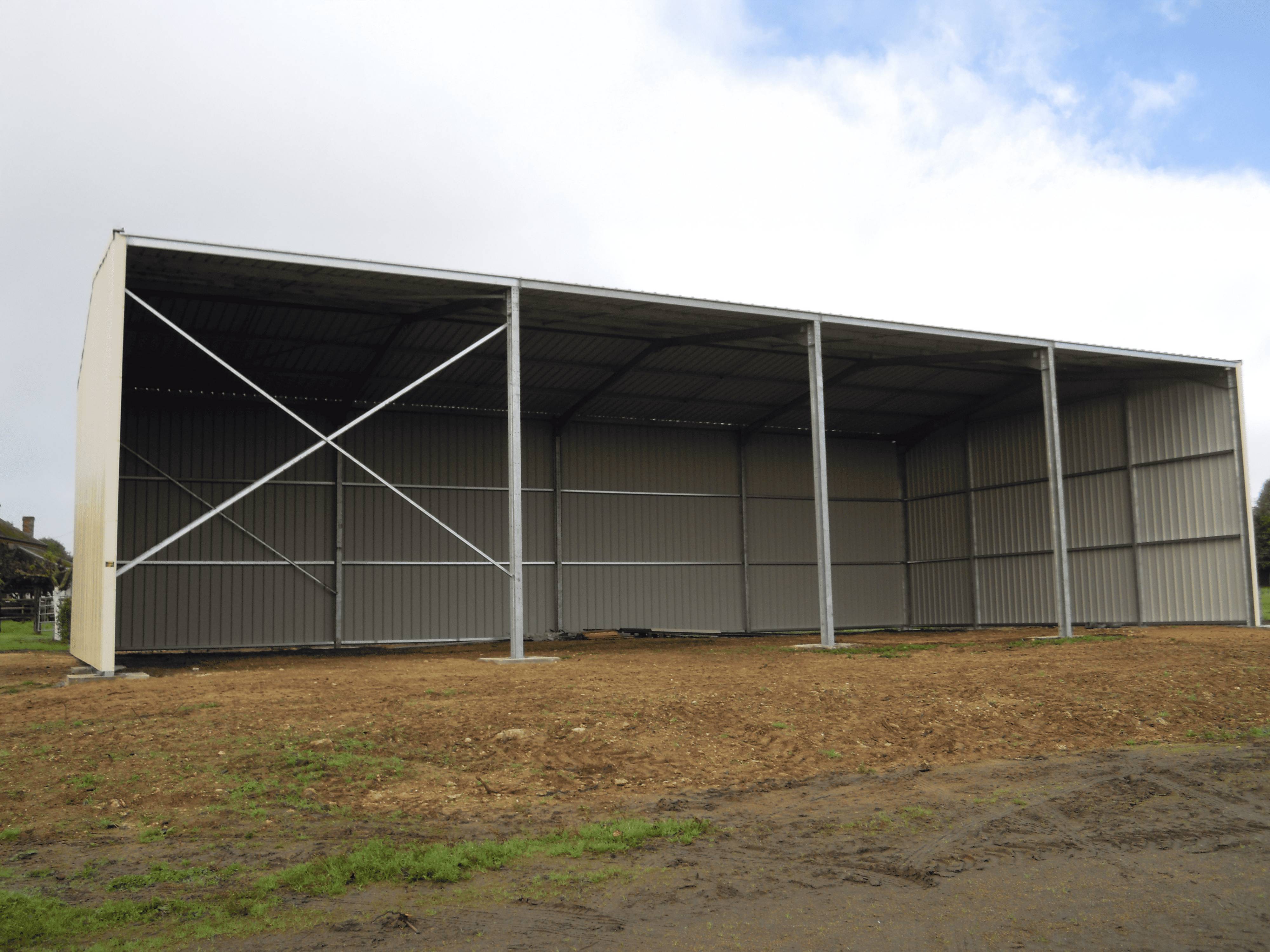

The prices listed are exclusive of tax and do not include shipping costs. These costs will be provided to you when you request a quote and provide your address. This building is part of the Galvabat® line and is eligible for installation at altitudes of up to 260 meters only (V2NA2 installation zones). Illustrative photo is for illustrative purposes only. Discount applies only to the building’s structure and roofing.
Delivery
- Following your order, one of our experts will contact you to confirm all the details of your delivery (time period, tonnage, unloading, estimated date).
- Please allow an average of 8 weeks for delivery of our in-stock buildings and between 12 and 16 weeks for our custom-built buildings (upon receipt of the signed plans).
