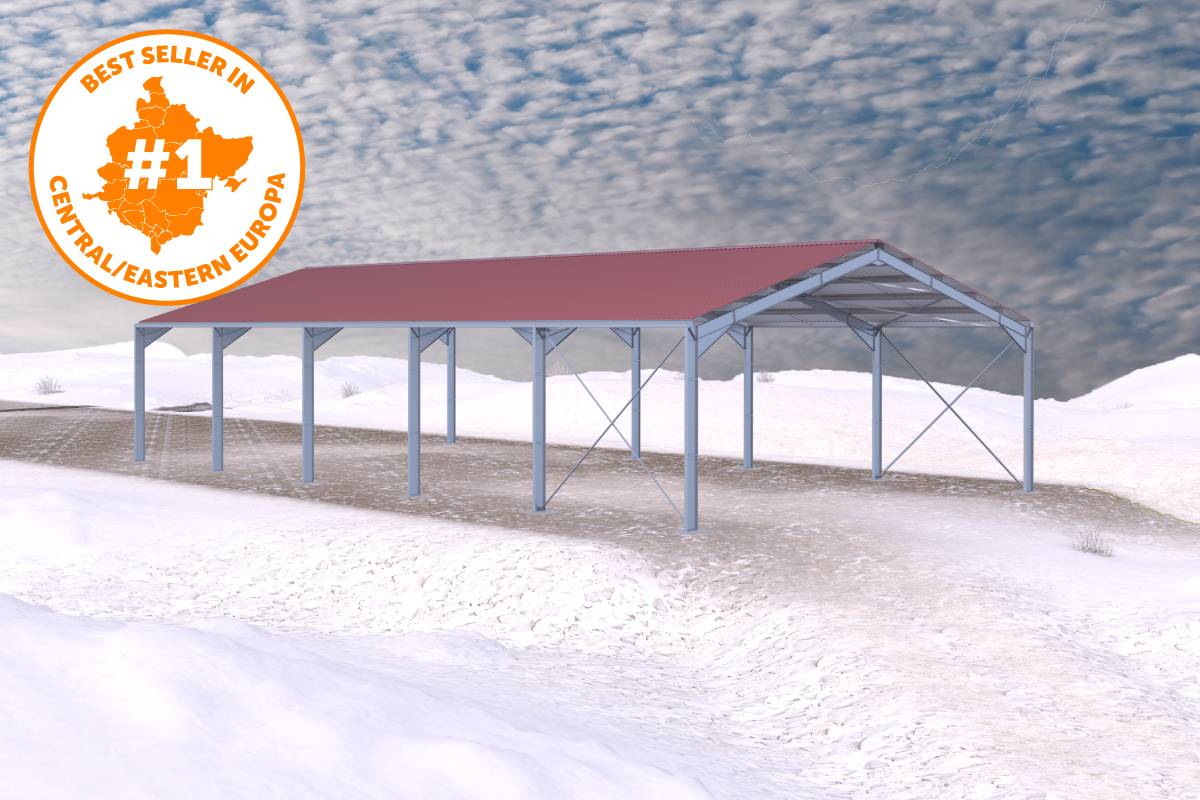

Galvanized reinforced building 415m² for heavy snow load

Request a free quote

Building details

Shape and sizes

Opening : Openned
Building area : 415m2
Type of slope : Double slope (25%)

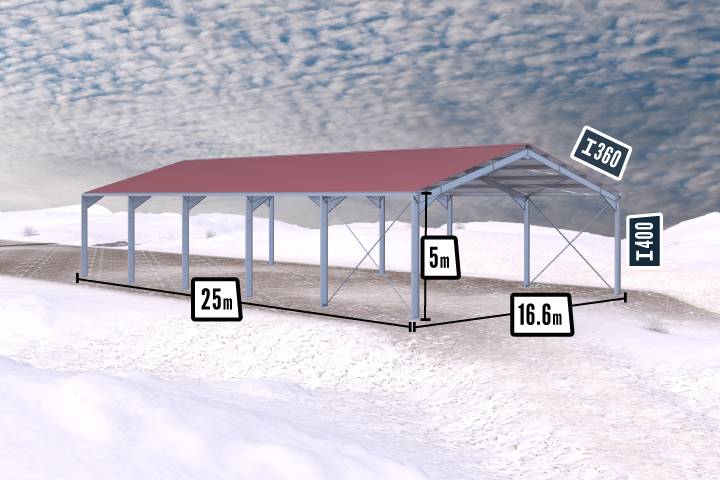

Width : 16.6m
Length : 25m
Height : 5m
Rafter section : Ⅰ 360mm
Post section : Ⅰ 400mm
Purlins : C180mm galvanized
Gutters : Galvanized

Covering

Type of roofing : 0.63mm lacquered sheet metal
Ridge : Flat & Extra large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1: Adapted to mountainous areas up to 850m
Specificity 2: Galvanized interlocking gutters
Specificity 3: Draining condensation controller

Description

Our reinforced and galvanized kit building is designed to withstand heavy snow loads

Snow-resistant solution: this storage building is ideal for areas with heavy snow load in Eastern Europe (Romania, Bulgaria, Slovakia, the Czech Republic, etc.).


Our building is constructed with a structure made of hot-dip galvanized high-strength steel, while the roof is made with top-grade reinforced 5-wave sheets and reinforced sections, offering unparalleled durability and resilience during heavy snowfalls.


It also includes gutters with high evacuation flow and a condensation controller.


The strengths of our 16,6x25x5m galvanized building:


Robustness and resistance

Savings and sustainability thanks to the rust protection effect of hot-dip galvanization

  • Steel frame and elements are protected against rust, guaranteeing years of durability.
  • No maintenance costs over the very long term, unlike a painted structure that requires regular touch-ups.


Efficient rainwater evacuation


Healthy air thanks to our draining condensation controller (absorption up to 500g/m²)

  • Eliminates the risk of mold on goods stored in an industrial warehouse
  • Offers an ideal sanitary environment for cattle, sheep, goat, and pig breeding


Easy delivery and assembly

  • Kit building delivered with its assembly plans to the address of your choice or the nearest port
  • Easy assembly using a lifting device and a few tools, even without technical knowledge thanks to the pre-drilled structure


Manufacturer's insurance and tax-free billing

The best-value market price

  • The budget focused on your primary need: you only spend on the essentials and not the accessory.
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market
The prices are exclusive of taxes and transport costs. These costs will be communicated to you at the time of your quote.
Building eligible for installation up to a maximum altitude of 850m for V2NA2 zones. Can also be eligible for installation in zone with snow area up to 125daN/m², wind speed of 25m/s max, up to 200m in altitude.
Illustration photo is not contractual.

Available options

Translucent sheets, smoke vents, zenithal vault: let in natural light to save energy
Reinforcement of roof's static load in order to receive photovoltaic panels
Cladding: Enclose your metal building
Insulation with our sandwich panels: eliminate temperature differences to benefit from a comfortable work space
Openings: adapt the space to your business: sliding door, sectional door, metal curtain, windows
Additional 5 and 6m spans: increase the surface area and length of the building
Canopies: add one or two canopies to increase the covered area
Mezzanine: increase the usable area of your building and create independent spaces
Overhead crane or a feed claw: we adapt the resistance of the building and provide you with a runway
Hinged mounting on base plate, mounting at level 0 instead of flush mounting
