Bâtimet en kit galvanisé et renforcé pour implantation en zone venteuse jusqu'à 213km/h 10%
Bâtimet en kit galvanisé et renforcé pour implantation en zone venteuse jusqu'à 213km/h

Galvanized building 500m² windy area (up to 213km/h)

Request a free quote

Building details

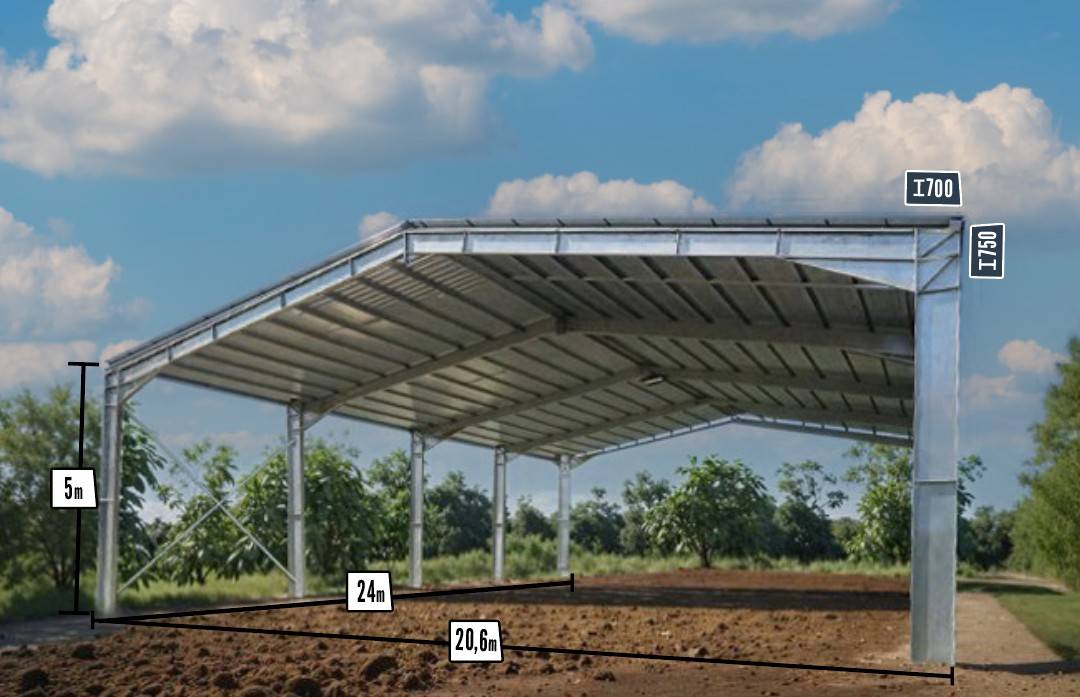

Shape and sizes

Building area : 500.00m2
Type of slope : Double slope (16%)
Width : 20.6m
Length : 24m
Height: 5m
Rafter section : Ⅰ 700mm
Post section : Ⅰ 750mm
Purlins : Z300mm

Covering

Type of roofing : Tropicalized lacquered sheet metal
Ridge : Flat & Extra large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1 : Articulated installation (fixing on plate at level 0)
Spécificité 2 : Condensation regulator

Description

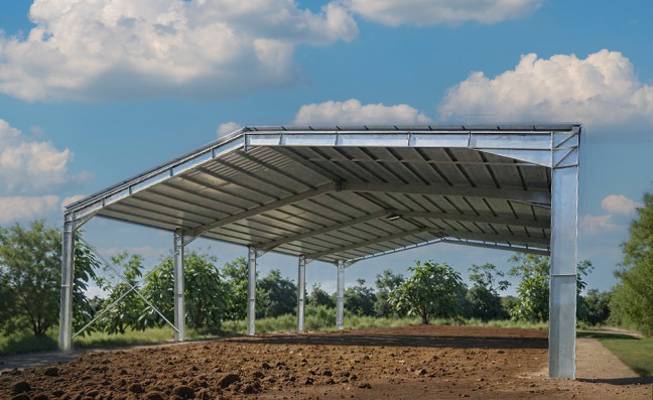

Thanks to its reinforced structure and its tropicalized roof, this hot-dip galvanized kit building is suitable for installation in cyclonic zones. Equipped with a hot-dip galvanized structure, this open hangar is robust and resistant, guaranteeing you the maintenance of your activity in safe conditions. Our kit building for windy zones is designed for easy assembly, and increased resistance thanks to the high resistance PRS and is offered to you at the best price on the market.



The strengths of our 20.60x24x5m building:

Robustness and resistance

  • Adaptation to windy areas: reinforced posts, calculated for installation in wind speed zones of 115.2 km/h (32m/s) in normal times and up to 192km/h in extreme weather corresponding to Guadeloupe, Réunion Island et Tahiti
  • Ɪ profile structure thanks to PRS made of High Resistance Steel, processes; and materials used in the construction of buildings of large dimensions and significant heights
  • Roof made of tropicalized 5-wave sheet metal, 60µ lacquering coming with stainless steel screws for an optimal durability
  • Optimal roof support thanks to our Z300 purlins stronger than C purlins and suitable for strong wind areas.


Savings and sustainability thanks to the rust protection effect of hot-dip galvanization

  • Steel frame and elements are protected from rust for many years
  • No maintenance costs over the very long term, unlike a painted structure that requires regular touch-ups



Efficient rainwater evacuation

  • Roof overhang of 20cm


Healthy air thanks to our draining condensation controller (absorption up to 500g/m²)

  • Eliminates the risk of mold on goods stored in an industrial warehouse
  • Offers an ideal sanitary environment for cattle, sheep, goat and pig breeding


Easy delivery and assembly

  • Kit building delivered with its assembly plans to the address of your choice or the nearest port
  • Easy assembly using a lifting device and a few tools, even without technical knowledge thanks to the pre-drilled structure


Manufacturer's insurance



The best value market price

  • The budget focuses on your primary need: you only spend on the essentials, not the accessory.
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market


Are you in an area subject to winds of more than 213 km/h? We can also provide you with a suitable building with additional reinforcement. Ask for your quote!

The prices are exclusive of taxes and transport cost. These costs will be communicated to you at the time of your quote. Building eligible for installation up to a maximum 213km/h wind speed. Illustration photo not contractual

Available options

Translucent sheets: let in natural light to save energy
Reinforcement of roof's static load in order to receive photovoltaic panels
Cladding: Enclose your metal building
Insulation with our sandwich panels: eliminate temperature differences to benefit from a comfortable work space
Openings: adapt the space to your business: sliding door, sectional door, metal curtain, windows
Additional 5 and 6m spans: increase the surface area and length of the building
Canopies: add one or two canopies to increase the covered area
Mezzanine: increase the usable area of your building and create independent spaces
Overhead crane or a feed claw: we adapt the resistance of the building and provide you with a runway
