Galvanized building 430m² Windy area (up to 192km/h)
- Building area: 430m2
- Height: 5m
- Type of slope: Double slope (16%)
- Width: 8.9m
- Length: 48m
- Prix au m2 : 74,33€/m2
From
€31,964instead of €35,516
Building details
Shape and sizes
| Opening : | Openned |
| Building area : | 430m2 |
| Type of slope : | Double slope (16%) |
| Width : | 8.9m |
| Length : | 48m |
| Height: | 5m |
| Rafter section : | Ⅰ 450mm |
| Post section : | Ⅰ 550mm |
| Purlins : | Z300mm |
Covering
| Type of roofing : | Tropicalized lacquered sheet metal |
| Ridge : | Flat & Extra large |
| Side Bracing : | Included |
| Bolts and fasteners : | Included |
Specificities
| Specificity 1 : | Reinforced building, suitable for windy areas up to 192km/h - Tropicalized metal sheets, ridge, cladding and finishing elements |
| Specificity 2 : | Galvanized interlocking gutters |
| Specificity 3 : | Draining condensation controller |
Description
Take advantage of our 430m² open building to install or reinforce your storage space. Our 400m² steel shed comes with a PRS High Resistance Steel structure, a reinforced 5-wave cover sheet as well as our draining condensation regulator, and our interlocking gutters. An open building in kit shape optimized for agricultural or industrial storage in a healthy atmosphere, always at the best value for money on the market.

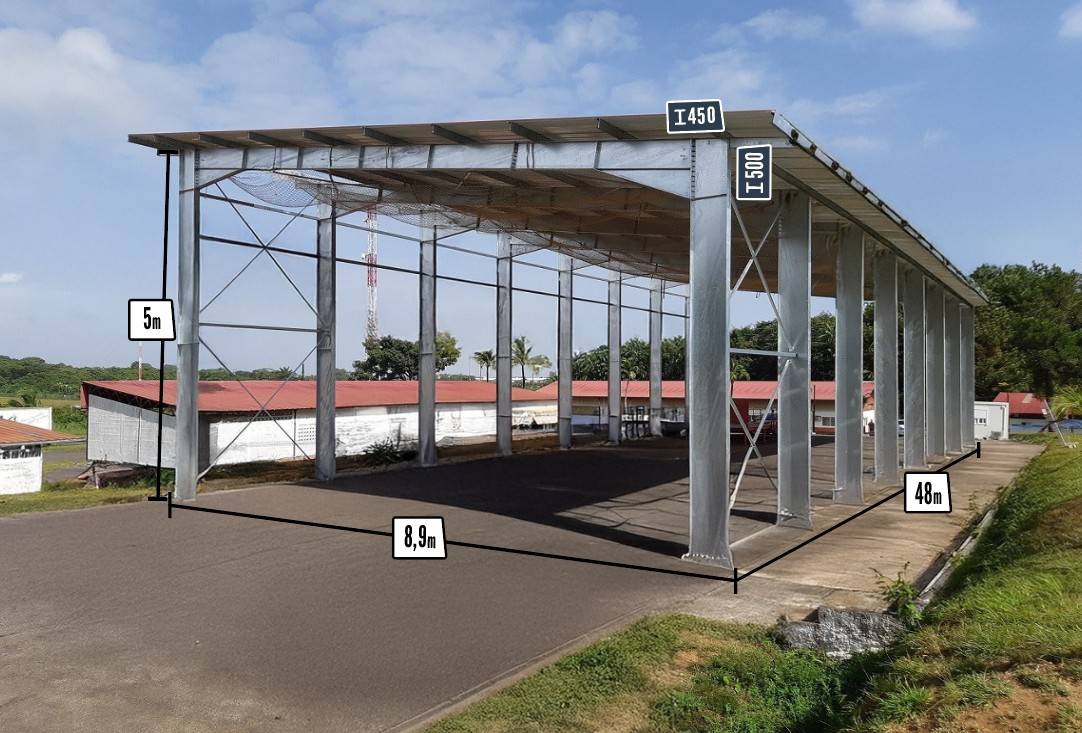

The strengths of our 8.90x48x5m galvanized building:
Robustness and resistance
- Adaptation to windy areas : reinforced posts, calculated for installation in wind speed zones of 115.2 km/h (32m/s) in normal times and up to 192km/h in extreme weather corresponding to Mayotte , Martinique and New Caledonia
- Ɪ profile structure thanks to PRS made of High Resistance Steel, processes and materials used in the construction of buildings of large dimensions and significant heights
-
Roof made of tropicalized metal sheet cover, thickness 63/100th 5reinforces waves a unique model of sheet metal with 8% more resistance than conventional sheet metal
- Optimal roof support thanks to Z300 purlins stronger than C purlins suitable for strong wind areas.
Savings and sustainability thanks to the rust protection effect of hot-dip galvanization
- Steel frame and elements are protected from rust for many years
-
No maintenance costs over the very long term, unlike a painted structure that requires regular touch-ups
Easy delivery and assembly
- Kit building delivered with its assembly plans to the address of your choice or the nearest port
- Easy assembly using a lifting device and a few tools, even without technical knowledge thanks to the pre-drilled structure
Manufacturer's insurance and tax-free billing
- Manufacturers' warranties included in our German insurance HDI Gerling
The best-value market price
- The budget focuses on your primary need: you only spend on the essentials and not the accessory.
- 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market
The prices are exclusive of taxes and transport cost. These costs will be communicated to you at the time of your quote.
Building eligible for installation up to a maximum altitude of 260m only.
Illustration photo not contractual.
Available options
| Translucent sheets: let in natural light to save energy |
| Reinforcement of roof's static load in order to receive photovoltaic panels |
| Cladding: Enclose your metal building |
| Insulation with our sandwich panels: eliminate temperature differences to benefit from a comfortable work space |
| Supporting beam |
| Additional 5 and 6m spans: increase the surface area and length of the building |
| Canopies: add one or two canopies to increase the covered area |
| Mezzanine: increase the usable area of your building and create independent spaces |
| Overhead crane or a feed claw: we adapt the resistance of the building and provide you with a runway |
| Hinged mounting on base plate, mounting at level 0 instead of flush mounting |
